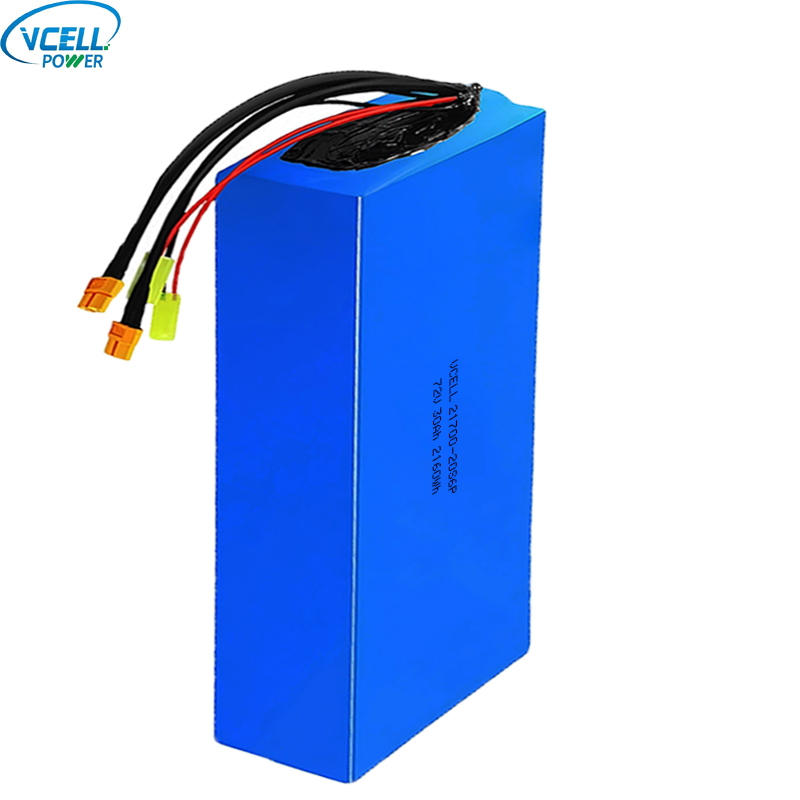

72V 30Ah Rechargeable Lithium Ion Battery
This 72v 30Ah rechargeable lithium ion battery make by VCELL POWER manufacturer and supplier in China. VCELL POWER has a complete ISO9001 quality management system and industry certification, and has accumulated rich professional production experience in the field of lithium batteries. We have strong customization capabilities and can meet the diverse and personalized needs of customers. One-year warranty, quality commitment.
Send Inquiry
Product Description
VCELL POWER 72v 30Ah rechargeable lithium ion battery is assembled from 20S6P high-capacity 21700 model cells, high energy density, reducing the volume and weight of the battery pack. The cycle life exceeds 700 times, and the long-term use cost is lower. No memory effect, it is very convenient to charge and discharge at any time, avoiding deep discharge and extending life. Built-in BMS, good safety performance, quality commitment.
Product Parameter
| Battery Type | Lithium Ion Battery |
| Model | NCM21700-72-30 |
| Nominal Voltage | 72V |
| Nominal Capacity | 30Ah |
| Charge Cut-Off Voltage | 84.0V |
| Discharge Cut-Off Voltage | 55.0V |
| Standard Charge current | 0.2C |
| Max Charge Current: | 1.0C |
| Standard Discharge Current | 0.2C |
| Max Continuous Discharge Current | 1.5C |
| Peak Discharge Current | 3.0C(<3S ) |
| Charge Temperature | 0~45℃ |
| Discharge Temperature | -20~60℃ |
| Weight | 9.0kg Approx |
| Cycle Life | >700 times |
| Size | 450*140*78mm Max or Customized |
Product Feature And Application
1.VCELL POWER 72v 30Ah rechargeable lithium ion battery uses 21700 model cells, high energy density, compact structure, high space utilization, suitable for embedding inside the device
2.Equipped with intelligent battery management system, providing multiple protections such as overcharge, over-discharge, over-current, short-circuit, temperature, etc. And supports SMBUS/CANBUS/RS232, RS485/I2C/Bluetooth communication protocol.
3.Support fast charging and fast discharging
4.Wide operating temperature range, suitable for a variety of scenarios
5.VCELL POWER 72v 30Ah rechargeable lithium ion battery is a good choice for electric motorcycles, logistics trucks, forklifts, pallet trucks, AGV, etc.
Production Details
1. VCELL POWER 72v 30Ah rechargeable lithium ion battery is made of high-performance 21700 lithium-ion cell, with guaranteed quality
2. Built-in BMS, which improves the utilization rate of the battery
