72V 20Ah Ebike Lithium Ion Battery
This 72v 20Ah ebike Lithium ion battery make by VCELL POWER manufacturer in China. VCELL POWER have more than 20 years of experience in the field of lithium-ion battery manufacturing, mastering the entire chain from battery design, material selection to large-scale mass production。 After being tested in the global market, our professional production capabilities have been widely recognized.
Send Inquiry
Product Description

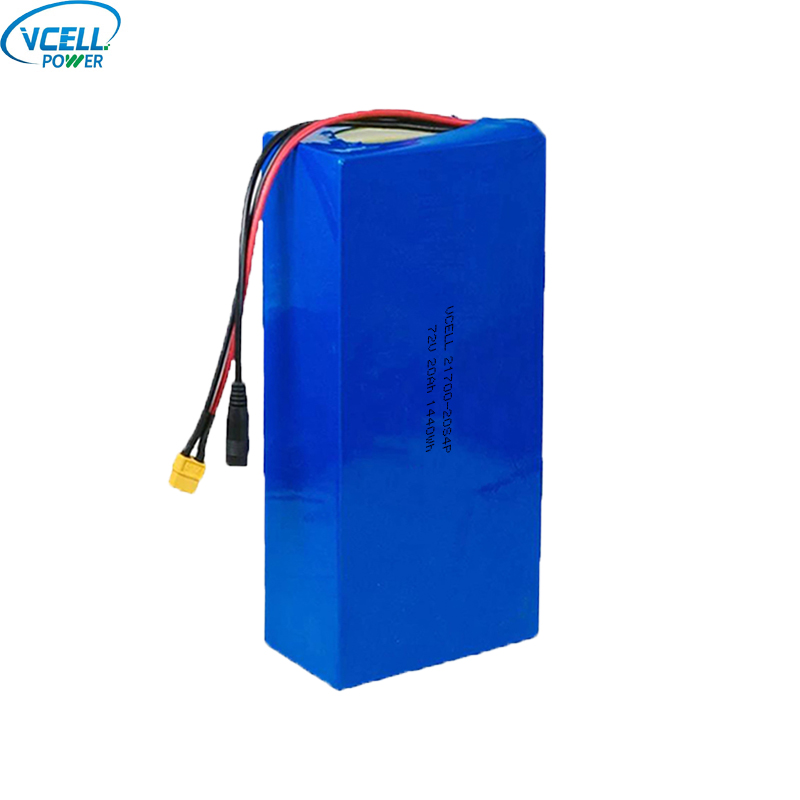

VCELL POWER 72v 20Ah ebike Lithium ion battery uses 20S4P high-capacity 21700 model cells, strong power, long endurance. Lightweight and portable, built to last. built-in BMS, safe and reliable. Fast charging, saves time, says goodbye to mileage anxiety, and enjoys a freer, more worry-free, and more environmentally friendly electric riding experience!
Product Parameter
| Battery Type | Lithium Ion Battery |
| Model | NCM21700-72-20 |
| Nominal Voltage | 72V |
| Nominal Capacity | 20Ah |
| Charge Cut-Off Voltage | 84.0V |
| Discharge Cut-Off Voltage | 55.0V |
| Standard Charge current | 0.2C |
| Max Charge Current: | 1.0C |
| Standard Discharge Current | 0.2C |
| Max Continuous Discharge Current | 1.5C |
| Peak Discharge Current | 3.0C(<3S ) |
| Charge Temperature | 0~45℃ |
| Discharge Temperature | -20~60℃ |
| Weight | 6.0kg Approx |
| Cycle Life | >700 times |
| Size | 450*95*78mm Max or Customized |
Product Feature And Application
1.VCELL POWER 72v 20ah ebike Lithium ion battery uses 21700 model cells, high energy density, compact structure, high space utilization, suitable for embedding inside the device.
2.Equipped with intelligent battery management system, providing multiple protections such as overcharge, over-discharge, over-current, short-circuit, temperature, etc.
3.Support fast charging and fast discharging.
4.VCELL POWER 72v 20ah Lithium ion battery is a good choice for electric motorcycles, electric tricycles, AGVs, forklifts, robots, etc.
Production Details
1. VCELL POWER 72v 20ah ebike Lithium ion battery is made of high-performance 21700 lithium-ion cell, with guaranteed quality
2. Built-in BMS, which improves the utilization rate of the battery
