48V 51.2V 100Ah 5Kwh Rechargeable LiFePO4 Battery
This 48V 51.2V 100Ah 5Kwh Rechargeable LiFePO4 Battery made by VCELL POWER manufacturer in China. VCELL POWER has a modern, automated professional LiFePO4 battery production base. Experienced engineers and technical workers are the solid guarantee of our LiFePO4 battery production quality and efficiency. Quick response to customer needs, flexible adjustment of product solutions, and high cost performance are our competitiveness.
Send Inquiry
Product Description

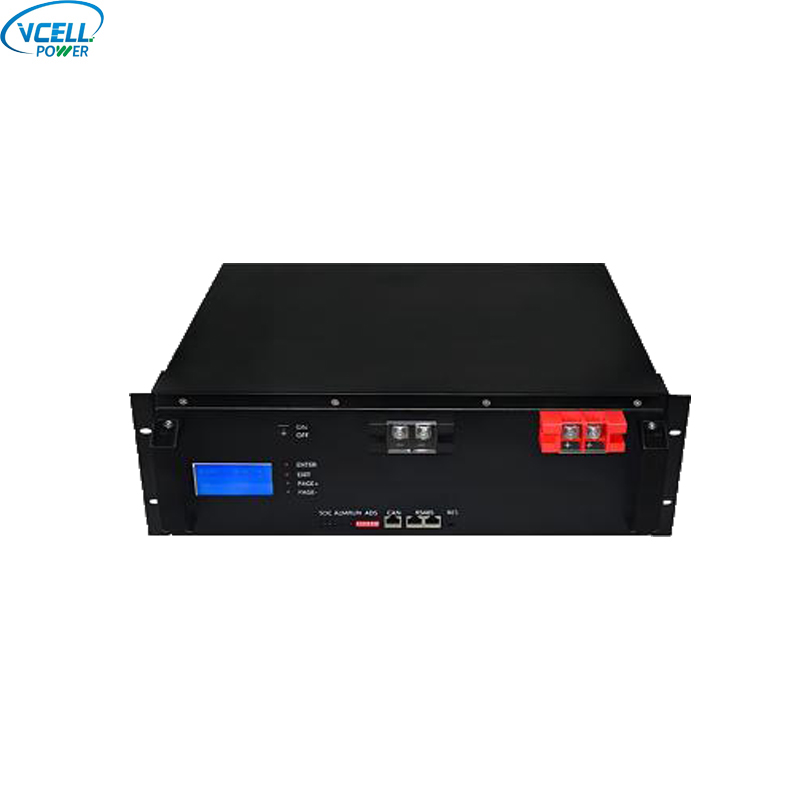

VCELL POWER 48V 51.2V 100Ah 5Kwh rechargeable LiFePO4 battery uses high energy density lithium iron phosphate cells, stable and long cycle life. The shell adopts a 3U standard rack, small size, light weight, easy to install and carry. Wide operating temperature range, suitable for extreme environments. With Smart BMS, SMBUS/CANBUS/RS232, RS485/I2C/Bluetooth Communication protocol is optional.
Product Parameter
| Battery Type | LiFePO4 Battery |
| Model | VP-LF48-100U |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Charge Cut-Off Voltage | 58.4±0.2V |
| Discharge Cut-Off Voltage | 40.0±0.2V |
| Max Charge Current: | 100.0A |
| Max Continuous Discharge Current | 100.0A |
| Peak Discharge Current | 200.0A(1-3S) |
| Charge Temperature | 0~45℃ |
| Discharge Temperature | -20~65℃ |
| Storage Temperature | -20°C~50°C |
| Design Life | ≥10 Years |
| Cycle Life | ≥6000 @80% DOD0.5C Charge/Discharge |
| Dimension | 483*485*155mm |
| Weight | Approx 45.5Kg |
| Communication | RS485/RS232/Canbus |
| IP Level | IP30 |
Product Feature And Application
1. VCELL POWER 48V 51.2V 100Ah 5Kwh rechargeable LiFePO4 battery uses the most stable LiFePO4 cells, High safety, good thermal stability
2. Long cycle life, durable, economical
3. 3U standard rack, small size, light weight, easy to install and carry
4. VCELL POWER 48V 51.2V 100Ah 5Kwh rechargeable LiFePO4 battery is widely used for UPS backup power supply, server cabinet power supply, 5G base station backup power supply, off-grid/grid-connected system, home energy storage, AGV car, medical instrument backup power supply, etc.
Production Details
1.VCELL POWER 48V 51.2V 100Ah 5Kwh rechargeable LiFePO4 battery is based on high-performance LiFePO4 cells, with excellent thermal and chemical stability, safe to use.
2.With 19’’ 3U cabinet, small size, light weight, easy to install and carry
