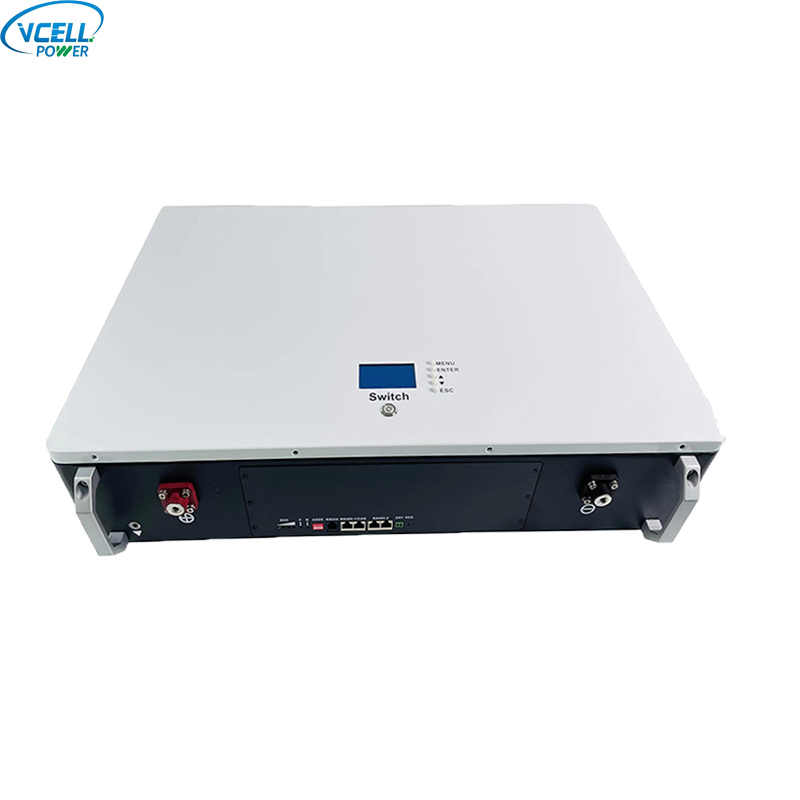

48V 51.2V 100.0Ah Power Wall Type LiFePO4 Battery
This 48v 51.2v 100.0Ah power wall type LiFePO4 battery made by VCELL POWER manufacturer and supplier in China. As a professional manufacturer with more than 20 years of experience in lithium battery production, VCELL POWER has a complete ISO9001 quality management system and industry certification, and uses first-class batteries to provide you with reliable power solutions. Choose VCELL POWER, choose a long-term quality guarantee!
Send Inquiry
Product Description
VCELL POWER 48V 51.2V 100.0Ah power wall type LiFePO4 battery adopts lithium iron phosphate cells, which are highly safe, stable and have a long cycle life. Equipped with an intelligent BMS battery management system to protect the battery in all directions. The power wall design is compact and lightweight, saves space, and supports parallel expansion, which is flexible and convenient. Compatible with a variety of communication interfaces.
Product Parameter
| Battery Type | LiFePO4 Battery |
| Model | VP-LF48-100PW |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Charge Cut-Off Voltage | 57.6±0.2V |
| Discharge Cut-Off Voltage | 44.8±0.2V |
| Max Charge Current | 100.0A |
| Max Continuous Discharge Current | 100.0A |
| Peak Discharge Current | 200.0A(1-3S) |
| Charge Temperature | 0~45℃ |
| Discharge Temperature | -20~65℃ |
| Storage Temperature | -20°C~50°C |
| Design Life | ≥10 Years |
| Cycle Life | ≥6000 @80% DOD0.5C Charge/Discharge |
| Dimension | 610*520*165mm |
| Weight | Approx 45.0Kg |
| Communication | RS485/RS232/Canbus |
| IP Level | IP30 |
Product Feature And Application
1. VCELL POWER 48v 51.2v 100.0ah power wall type LiFePO4 battery uses the most stable LiFePO4 cells, High safety, good thermal stability
2. Long cycle life, durable, economical
3. With Smart BMS, SMBUS/CANBUS/RS232, RS485/I2C/Bluetooth Communication protocol is optional.
4. VCELL POWER 48v 51.2v 100.0ah power wall type LiFePO4 battery is widely used for Home ESS, small commercial energy storage, solar off-grid system, communication base station energy storage, emergency backup power supply, etc.
Production Details
1.VCELL POWER 48v 51.2v 100.0ah power wall type LiFePO4 battery is based on high-performance LiFePO4 cells, with excellent thermal and chemical stability, safe to use.
2.The power wall design is compact and lightweight, saves space, and supports parallel expansion, which is flexible and convenient.
