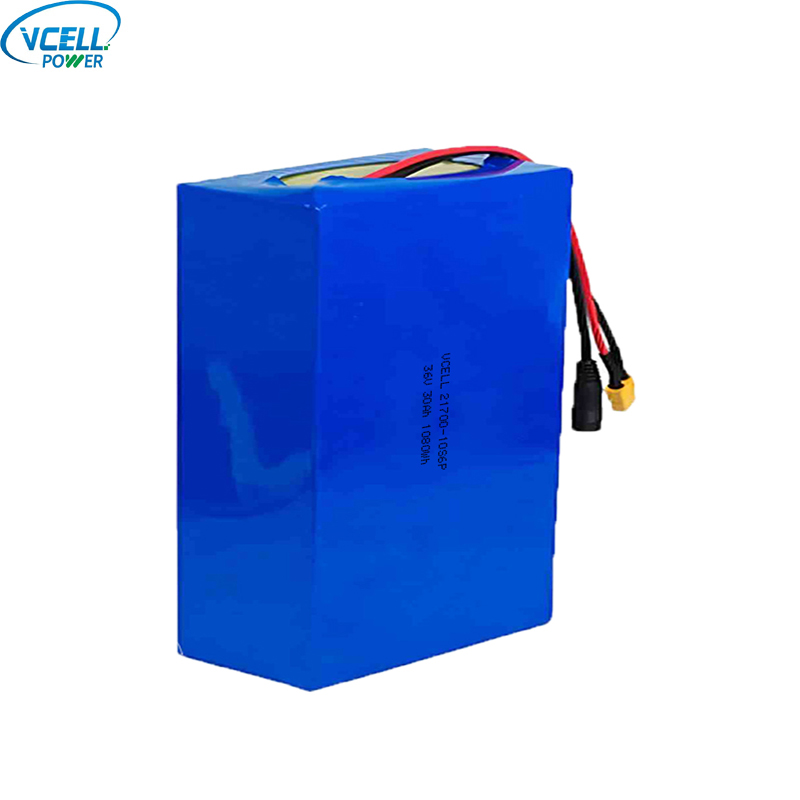

36V 30Ah Replacement Lithium Ion Battery Pack

This durable 36V 30Ah replacement lithium ion battery pack make by VCELL POWER factory in China. VCELL POWER has deep lithium battery technology accumulation and mature production technology, and is a professional production practitioner. Professional production helps you reduce supply chain risks and improve the competitiveness of terminal products.

Send Inquiry

Product Description

VCELL POWER high quality 36V 30Ah replacement lithium ion battery pack uses 10S6P 21700 high energy density lithium-ion battery cells, No memory effect, more than 700 times cycle life. Support fast charging. Built-in intelligent BMS, providing multiple protections, and supports SMBUS/CANBUS/RS232, RS485/I2C/Bluetooth communication protocol to monitor battery status in real time.

Product Parameter

Battery Type	Lithium Ion Battery
Model	NCM21700-36-30
Nominal Voltage	36V
Nominal Capacity	30Ah
Charge Cut-Off Voltage	42V
Discharge Cut-Off Voltage	27.5V
Standard Charge current	0.2C
Max Charge Current:	1.0C
Standard Discharge Current	0.2C
Max Continuous Discharge Current	1.5C
Peak Discharge Current	3.0C(<3S )
Charge Temperature	0~45℃
Discharge Temperature	-20~60℃
Weight	4.51kg Approx
Cycle Life	>700 times
Size	22514075mm Max

Product Feature And Application

1.VCELL POWER 36V 30ah replacement lithium ion battery pack uses large capacity 21700 cells, high energy density, compact structure, high space utilization, suitable for embedding inside the device
2.Equipped with intelligent battery management system, providing multiple protections such as overcharge, over-discharge, over-current, short-circuit, temperature, etc.
3.Support fast charging and fast discharging
4.With PVC heat shrink film, durable packaging
5.VCELL POWER 36V 30ah replacement lithium ion battery pack is a good choice for electric bicycles, electric scooters, electric wheelchairs, underwater exploration equipment, AGV, robots, etc.

Production Details

1. VCELL POWER 36V 30ah replacement lithium ion battery pack is made of high-performance 21700 lithium-ion battery, with guaranteed quality
2. Built-in BMS, which improves the utilization rate of the battery
