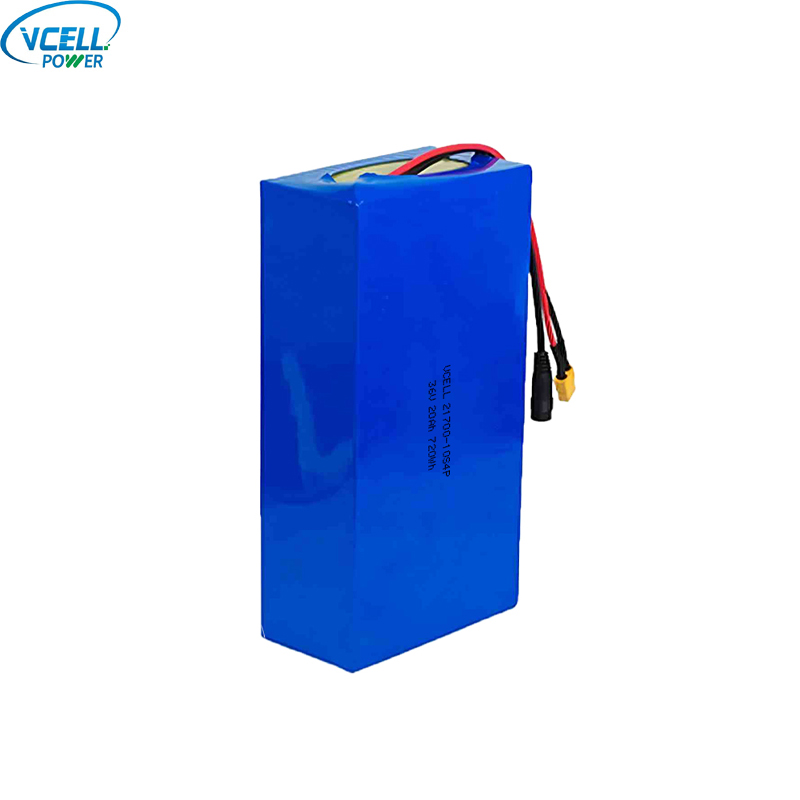

36V 20Ah Ebike Lithium Ion Battery Pack

This high quality 36V 20Ah ebike Lithium ion battery pack make by VCELL POWER manufacturer in China. VCELL POWER have more than 20 years of experience in the field of lithium-ion battery manufacturing, mastering the entire chain from battery design, material selection to large-scale mass production, and professionally producing in strict accordance with international specifications and safety standards. Welcome to partner with VCELL POWER!

Send Inquiry

Product Description

VCELL POWER high quality 36V 20Ah ebike Lithium ion battery pack is assembled from 10S4P high quality 21700 lithium-ion cells, with large capacity, strong power and long battery life. Lightweight and portable, with a long lifespan, built-in BMS, safe and intelligent. Fast charging saves time, says goodbye to mileage anxiety, and enjoys a freer, more worry-free, and more environmentally friendly electric riding experience!

Product Parameter

Battery Type	Lithium Ion Battery
Model	NCM21700-36-20
Nominal Voltage	36V
Nominal Capacity	20Ah
Charge Cut-Off Voltage	42V
Discharge Cut-Off Voltage	27.5V
Standard Charge current	0.2C
Max Charge Current:	1.0C
Standard Discharge Current	0.2C
Max Continuous Discharge Current	1.5C
Peak Discharge Current	3.0C(<3S )
Charge Temperature	0~45℃
Discharge Temperature	-20~60℃
Weight	3.0kg Approx
Cycle Life	>700 times
Size	2259575mm Max

Product Feature And Application

1.VCELL POWER 36V 20Ah Ebike Lithium Ion Battery Pack uses 21700 cells, high quality, compact structure, high space utilization, suitable for embedding inside the device
2.Equipped with intelligent battery management system, providing multiple protections such as overcharge, over-discharge, over-current, short-circuit, temperature, etc.
3.Support fast charging and fast discharging
4.VCELL POWER 36V 20ah Lithium ion battery pack is a good choice for electric bicycles, electric motorcycles, scooters, lawn mowers, high-pressure cleaners, electric motorcycles, AGV, etc.

Production Details

1. VCELL POWER 36V 20Ah Ebike Lithium Ion Battery Pack is made of high-performance 21700 lithium-ion battery, with guaranteed quality
2. Built-in BMS, which improves the utilization rate of the battery
