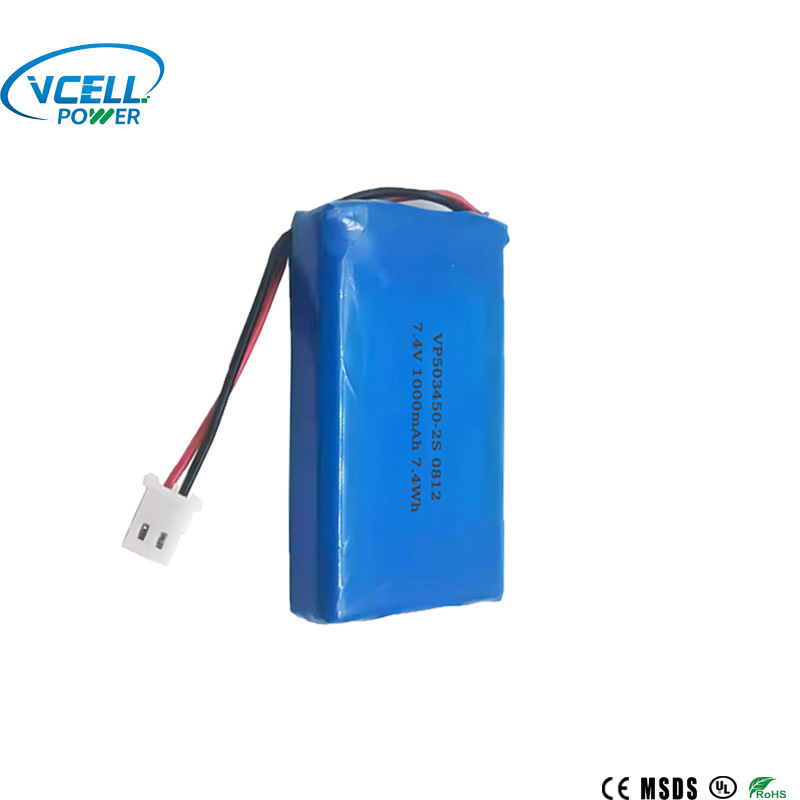

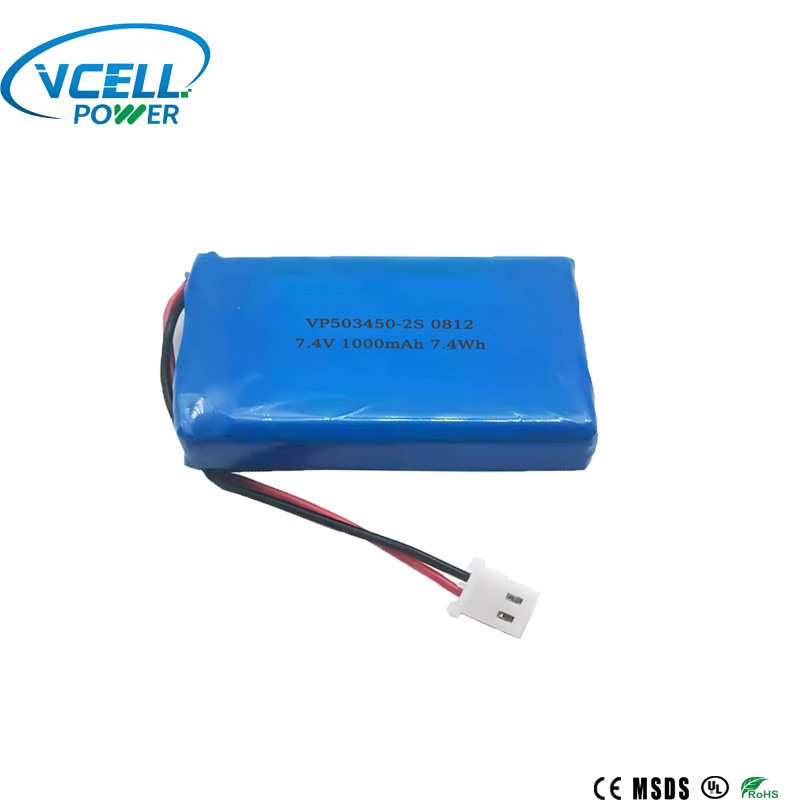

7.4V 1000mAh 503450 2S LiPo Battery
The 7.4V 1000mAh 503450 2S LiPo battery is manufactured by VCELL POWER, a professional lithium polymer battery manufacturer in China. VCELL POWER has nearly 20 years of production experience and provides thousands of different lithium polymer battery models to customers worldwide. These batteries are UL/CE certified and meet international safety standards. This 7.4V 1000mAh 503450-2S LiPo battery is specially designed for high-performance devices with space and weight constraints, and is an ideal choice for those seeking long-lasting power and stable performance.
Send Inquiry
Product Description
This 7.4V 1000mAh 503450 2S LiPo Battery utilizes two high quality lithium polymer cells in series, delivering a stable 7.4V nominal voltage and a generous 1000mAh capacity. Compared to other battery types, it offers higher energy density and lower self-discharge, providing long-lasting battery life for your device. The flat, rectangular design minimizes internal space within the device, and we utilize high-precision molds and automated production processes to ensure the quality of each battery. This battery also incorporates high-quality PCM, providing multiple protections against overcharge, over-discharge, and short circuits, ensuring safe and reliable use.
Product Parameter
| Battery Type | Lithium Polymer Battery |
| Brand | VCELL/OEM |
| Model | VP503450- 2S |
| Nominal Voltage | 7.4V |
| Nominal Capacity | 1000mAh |
| Charge Cut-Off Voltage | 8.4V |
| Discharge Cut-Off Voltage | 5.5V |
| Max Charge Current | 1.0C |
| Standard Discharge Current | 0.2C |
| Max Continuous Discharge Current | 1.5C |
| Peak Discharge Current | 5.0C(<3S) |
| Charge Temperature | 0~45℃ |
| Discharge Temperature | -20~60℃ |
| Dimension(T*W*L) | 10.2*34.5*52.5mm Max, With PCM |
| Weight | Approx 40.0g |
| Cycle Life | > 700 times |
| Lifetime | >5 Years |
| Wire/Connector | TBD |
Product Feature

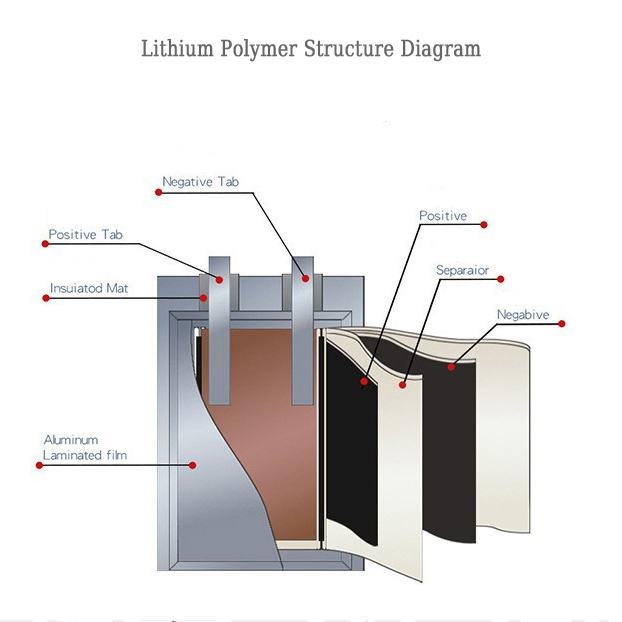

1. The 7.4V 1000mAh 503450 2S lipo battery utilizes a laminated cell process, which is safer than a wound cell process, offering lower internal resistance, a more stable discharge platform, and reduced leakage.
2. 1000mAh capacity means it can last for 1 hour at a 1000mA discharge current under ideal conditions, providing long-lasting battery life for your device.
3. Stable discharge performance ensures your device's performance.
4. 700+ cycle life, durable and affordable.
5. Low self-discharge rate for easy storage.
Production Details
Production Details

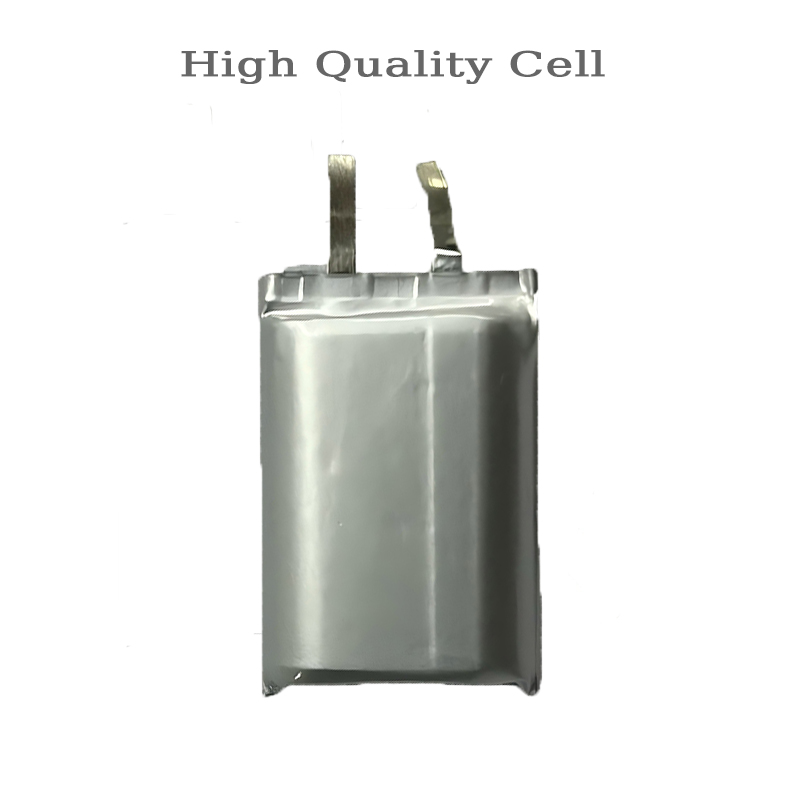

7.4V 1000mAh 503450 2S lipo battery is based on high-quality cell material, has enough capacity, and quality assurance.

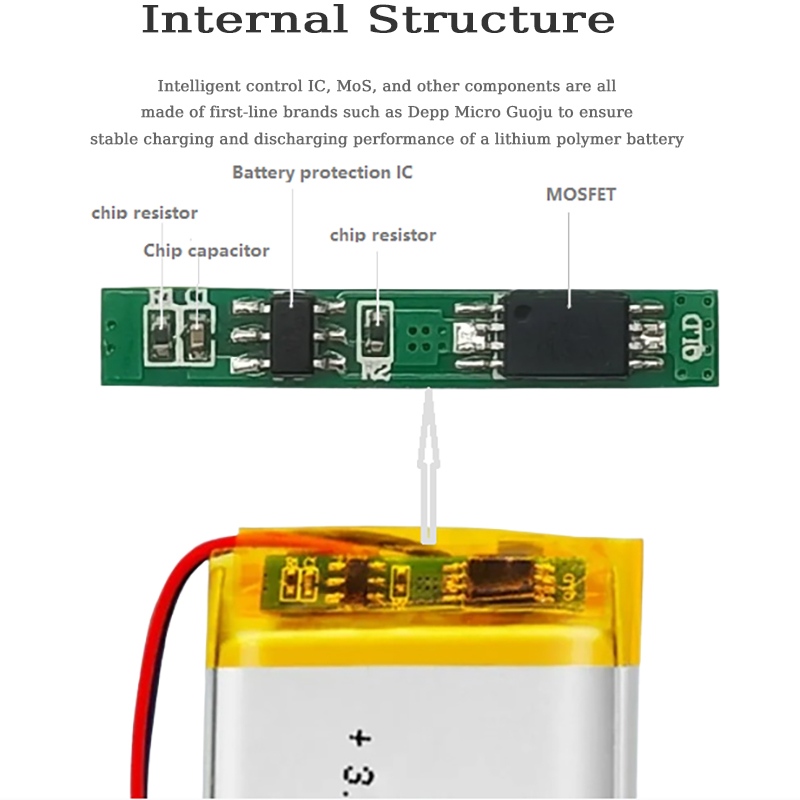

Built-in PCM provides all-round protection for the battery, making it safer to use

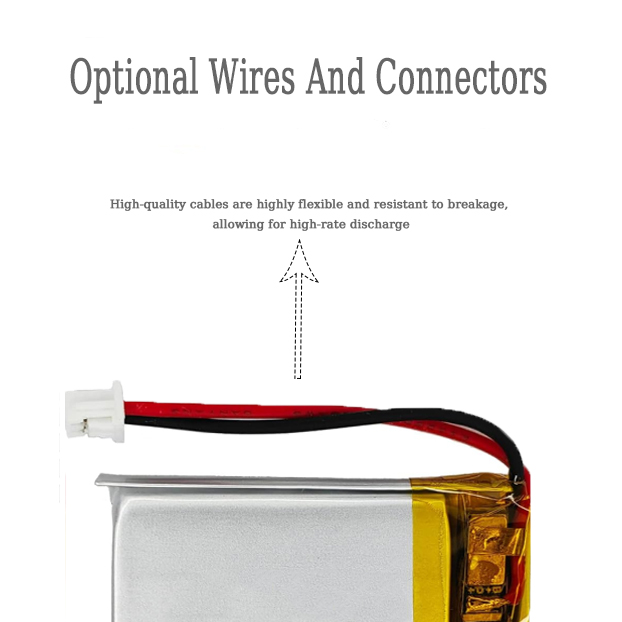

The battery's wire and connector can be optional
