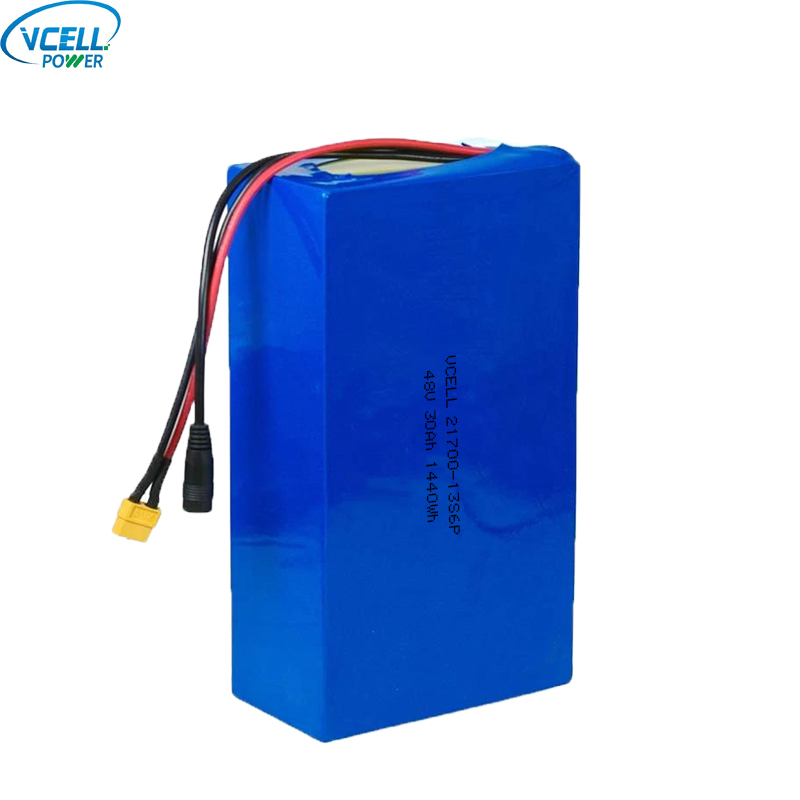

48v 30Ah 21700 Lithium Ion Battery Pack

This 48V 30Ah 21700 Lithium ion battery pack from VCELL POWER manufacturer in China. VCELL POWER is an experienced practitioner and expert in the field of lithium ion battery production. Our lithium ion batteries have excellent safety performance and trustworthy quality, and have passed UL, UN38.3, CE and other certifications. VCELL POWER operates with excellent quality and integrity, and sincerely invites you to seek common development!

Send Inquiry

Product Description

VCELL POWER 48v 30Ah 21700 Lithium Ion Battery Pack uses 13S6P high energy density 21700 model lithium-ion cells to achieve lightweight and large capacity of the battery pack, meeting the needs of long-distance commuting. Combined with intelligent BMS to ensure safety, it supports CAN bus and Bluetooth communication, and can monitor power, temperature, and number of cycles in real time through the APP, and provide fault diagnosis. At the same time, it meets dynamic load requirements with high-rate discharge and fast charging capabilities. It can expand capacity or battery life to adapt to different devices.

Product Parameter

Battery Type	Lithium Ion Battery
Model	NCM21700-48-30
Nominal Voltage	48V
Nominal Capacity	30Ah
Charge Cut-Off Voltage	54.6V
Discharge Cut-Off Voltage	36.4V
Standard Charge current	0.2C
Max Charge Current:	1.0C
Standard Discharge Current	0.2C
Max Continuous Discharge Current	1.5C
Peak Discharge Current	3.0C(<3S )
Charge Temperature	0~45℃
Discharge Temperature	-20~60℃
Weight	5.9kg Approx
Cycle Life	>700 times
Size	29076140mm Max or customized

Product Feature And Application

1.VCELL POWER 48V 30ah 21700 Lithium ion battery pack uses 21700 model cells, high energy density, compact structure, high space utilization, suitable for embedding inside the device
2.Equipped with intelligent battery management system, providing multiple protections such as overcharge, over-discharge, over-current, short-circuit, temperature, etc.
3.Support fast charging and fast discharging
4.Wide operating temperature range, suitable for a variety of scenarios
5.With PVC heat shrink film, durable packaging
6.VCELL POWER 48V 30ah 21700 Lithium ion battery pack is a good choice for mid-range and high-end electric bicycles,motorcycles, supporting steep slope climbing and high-speed driving. Solar energy storage, outdoor power supply, robots, power tools, etc.

Production Details

1. VCELL POWER 48V 30ah 21700 Lithium ion battery pack is made of high-performance 21700 lithium-ion cell, with guaranteed quality
2. Built-in BMS, which improves the utilization rate of the battery
