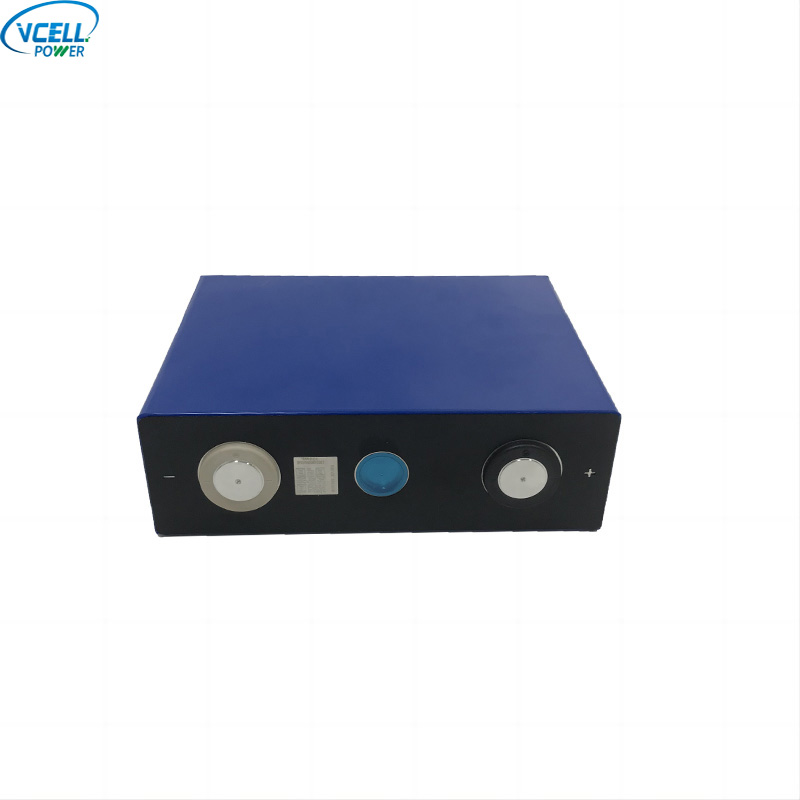

3.2V 100Ah Prismatic LiFePO4 Rechargeable Battery

VCELL POWER CO., LIMITED supplies quality 3.2v 100Ah prismatic LiFePO4 rechargeable battery with 2 years warranty. Our company has rich production experience in LiFePo4 battery and has various battery models, providing customized battery pack service.

Send Inquiry

Product Description

3.2V 100Ah prismatic LiFePO4 rechargeable battery is a very popular and standardized battery specification on the market. The material is stable and safe, and can be used to build common system voltages such as 12V/24V/48V. 100Ah is also a commonly used battery specification in VCELL POWER CO., LIMITED, with large capacity, high energy density, low price, and flexible and convenient assembly.

Product Parameter

Battery Type	LiFePO4 Battery
Model	IFR50160118
Nominal Voltage	3.2V
Nominal Capacity	100Ah
Charge Cut-Off Voltage	3.65V
Discharge Cut-Off Voltage	2.0V
Standard Charge current	34A
Max Charge Current:	100A
Max Continuous Discharge Current	100A
Peak Discharge Current	300A(<30S )
Charge Temperature	0~55℃
Discharge Temperature	-20~65℃
Internal Resistance	≤0.5mΩ
Weight	2kg Approx
Cycle Life	>4000 cycles @0.5C/0.5C at 25℃
Size	160±0.8mm50.1±0.5mm118.5±0.5mm

Product Feature And Application

1. 3.2V 100Ah prismatic LiFePO4 rechargeable battery, with large capacity, long endurance.
2. Over 4000 times cycle life, high cost performance
3. No pollution

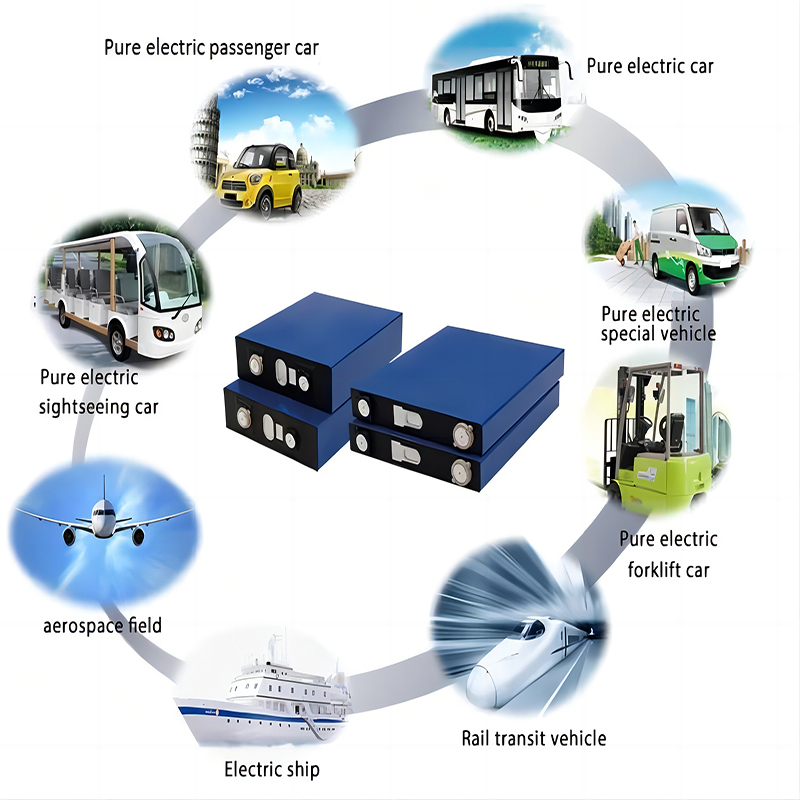

4. 3.2V 100Ah prismatic LiFePO4 rechargeable battery widely used in various home energy storage systems, communication base stations, RV, EV, UPS, special vehicles, etc.

Production Details

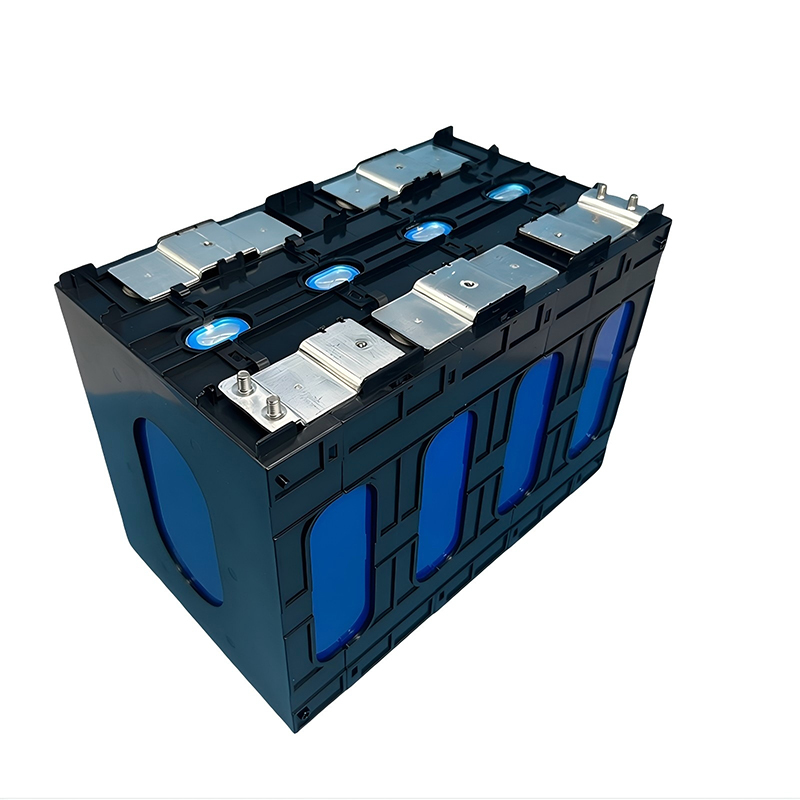

1.3.2V 100Ah prismatic LiFePO4 rechargeable battery, prismatic structure, stable, easy to stack and integrate
2.High energy density, wide operating temperature range, good sealing characteristics, high safety
