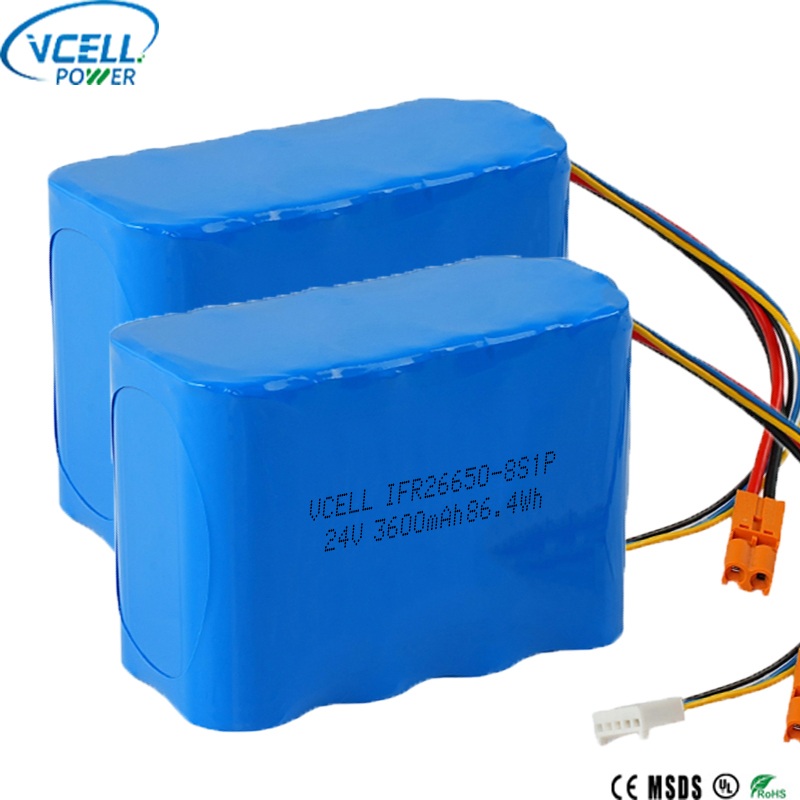

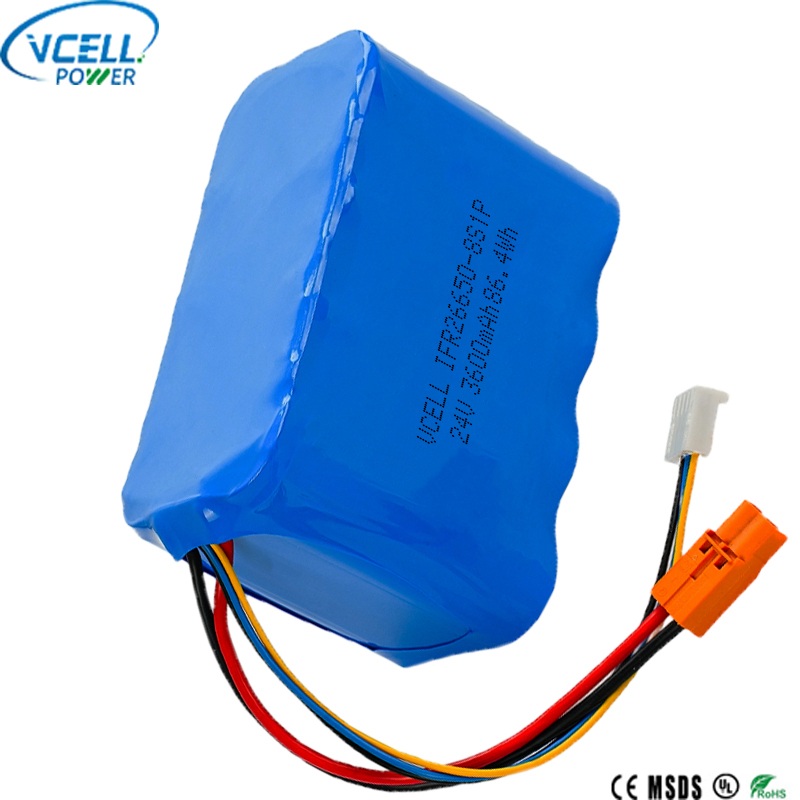

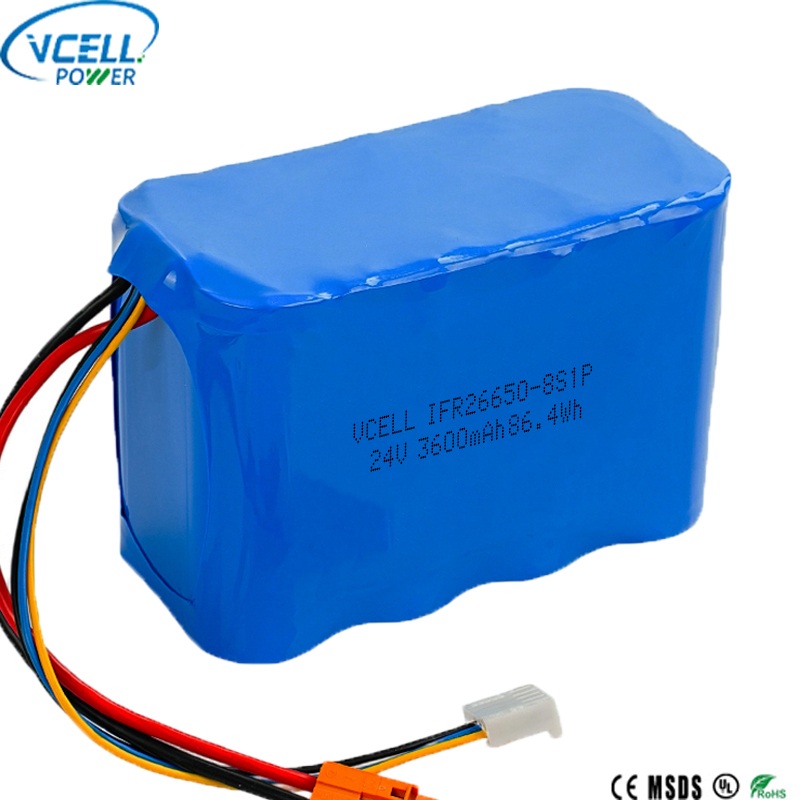

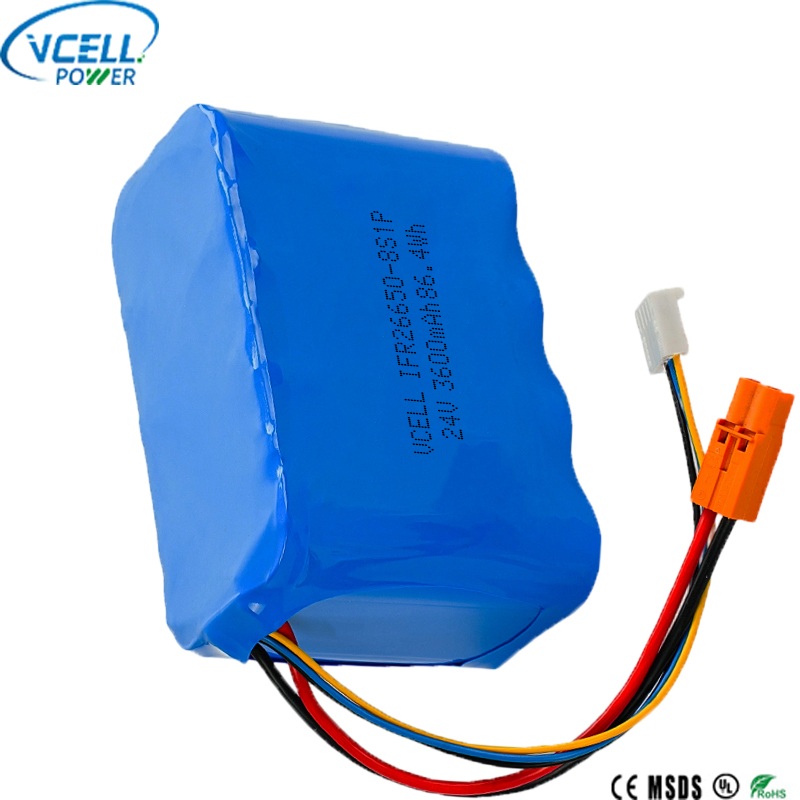

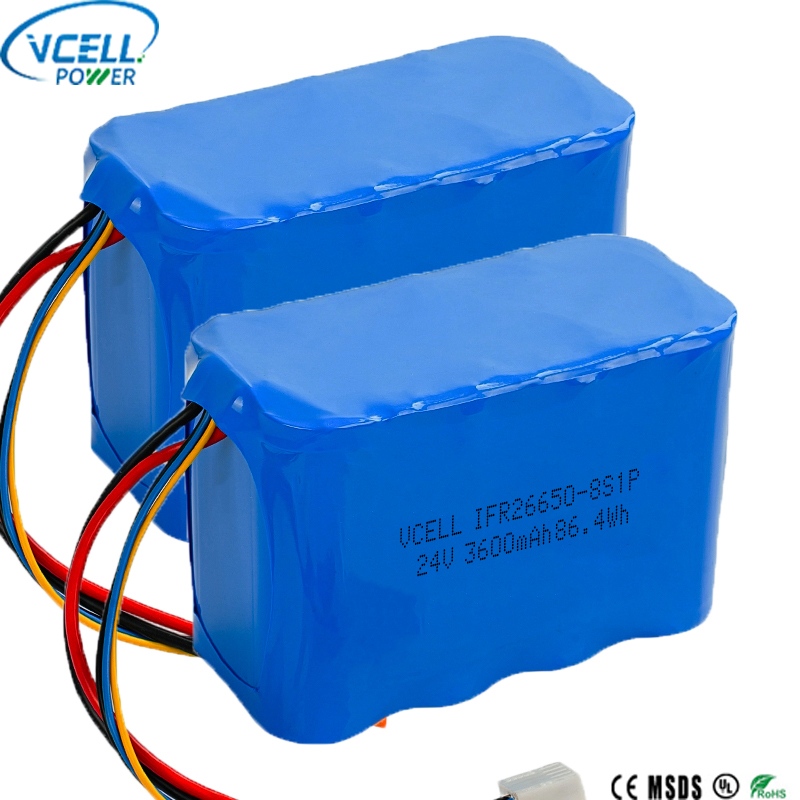

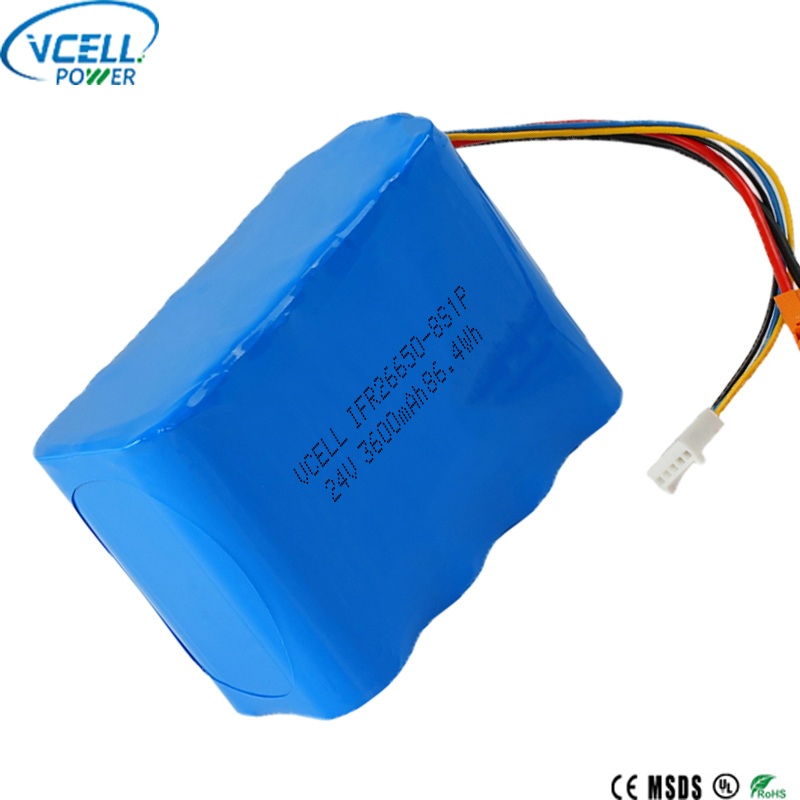

This 24V 3600mAh 26650 LiFePO4 rechargeable battery pack is a high-performance 24V battery from Vcell Power battery manufacturer in China. It features a compact 8S1P design with 3600mAh capacity and 86.4Wh energy output. Constructed with durable 26650 cells, VCELL 24V 3600mAh 26650 LiFePO4 rechargeable battery pack provides more than 2500 cycles life, excellent thermal safety. Welcome to inquiry!
VCELL POWER 24V 3600mAh 26650 LiFePO4 rechargeable battery pack combines high energy density, an ultra-long cycle life, and exceptional safety performance. Weighing in at only approximately 690g, more than 60% lighter than lead-acid batteries of equivalent capacity, it significantly reduces the load on the equipment. Furthermore, the battery pack features a built-in BMS (Battery Management System) that provides multiple layers of protection, including safeguards against overcharging, over-discharging, overcurrents, and short circuits to comprehensively ensure the health and longevity of the battery. The 24V 3600mAh 26650 LiFePO4 rechargeable battery pack is suitable for use in electric scooters, AGVs (Automated Guided Vehicles), robotics, solar energy storage systems, and industrial equipment.
| Battery Type | Lithium Iron Phosphate Battery |
| Brand | VCELL/OEM |
| Model | VP-LF24-3600 |
| Nominal Voltage | 24V |
| Nominal Capacity | 3600mAh |
| Charge Cut-Off Voltage | 29.2V |
| Discharge Cut-Off Voltage | 20.0V |
| Standard Charge | 0.2C |
| Max charge current | 1.0C |
| Standard discharge current | 0.2C |
| Maximum Continuous Discharge Current | 3.0C |
| Peak Discharge Current | 5.0C(<3S) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20℃~+65℃ |
| Size(L*W*H) | 115*58*69mm Max, with BMS |
| Weight | Approx 690g |
| Cycle life | > 2500 cycles at 100% DOD,1C charge/discharge |
| Life Time | > 10 Years |
| Wire/Connector | TBD |
1.24V voltage – ready for lead-acid replacement or 24V devices.
2.2500+ cycles – less maintenance, lower cost.
3.LiFePO4 material – stable, non-flammable, non-explosive.

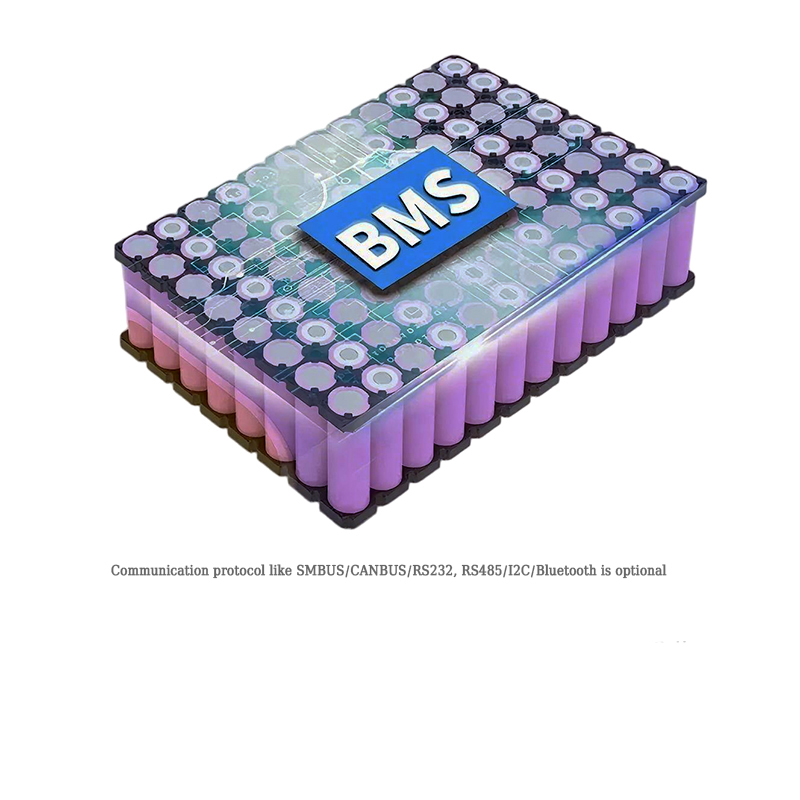

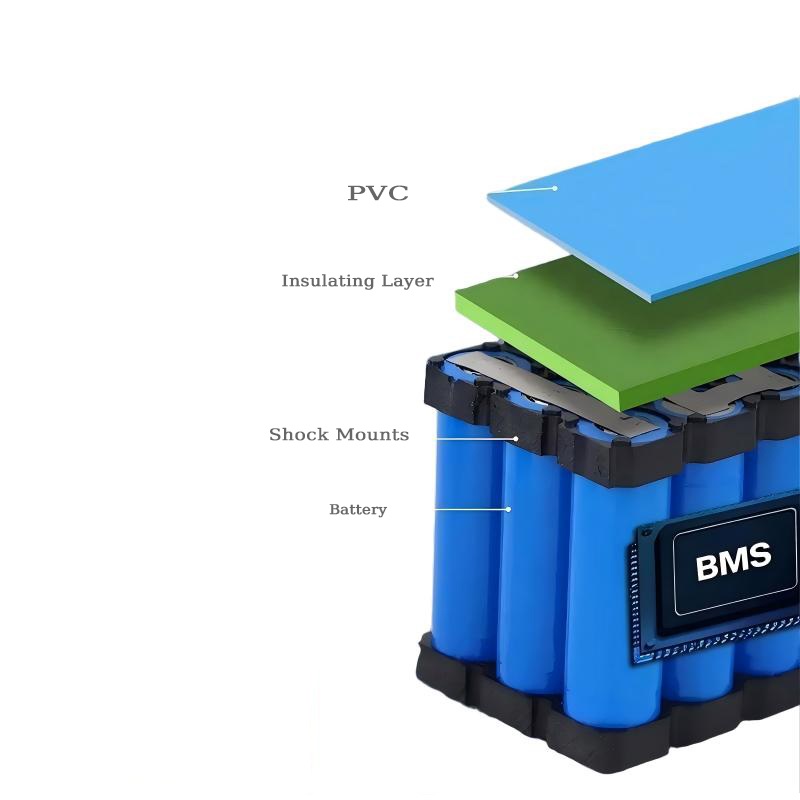

4.Built-in BMS – full protection for reliable operation.
5.RoHS, CE, UN38.3, etc – green and export-ready.
Electric scooters, electric bicycles, personal mobility devices, AGVs (Automated Guided Vehicles), warehouse robots, solar streetlights, power tools, communication equipment, security and surveillance systems, instrumentation, and more.
Packing Standard
Each battery is individually protected with insulating material, placed in a sturdy box, and securely packed into cartons. Cartons are then palletized for safe and efficient shipment.
Delivery :
FedEx Express To USA & Israel: 5–7 business days
UPS Express To Europe: 5–7 business days
Sea Freight: Available to most countries globally (economical option)
1. In-House Manufacturing: Own factory guarantees delivery time, with mass production finished in 25-30 days.
2. Competitive Pricing: More attractive prices than other suppliers, with high cost-effectiveness.
3. Customization Support: OEM/ODM services to meet your specific needs.
4. Quality Certification: ISO9001 certified for standardized management.
5. Rigorous Standards: All batteries comply with UN38.3, UL, CE and ROHS standards.
6. Global Trust: Products exported to over 80 countries, trusted by customers worldwide.
