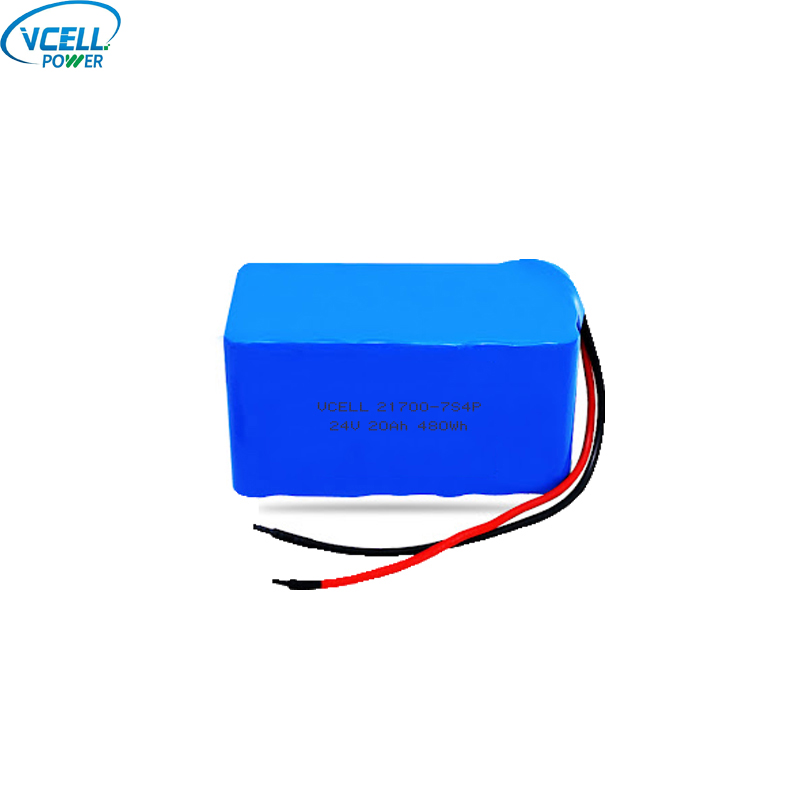

24V 20Ah 21700 7S4P Li Ion Battery Pack

This 24V 20ah 21700 7S4P Li ion battery pack make by VCELL POWER manufacturer in China. Our company specializes in lithium battery manufacturing, with advanced automated production lines, quality assurance and competitive prices. We are happy to explore cooperation opportunities with you!

Send Inquiry

Product Description

VCELL POWER 24V 20ah 21700 7S4P Li ion battery pack is assembled with large-capacity and high-energy-density lithium ion cells, which is sufficient in power. And built in the battery protection board, it provides all-around protection for the battery pack. VCELL POWER provides a 1-year warranty for this 24V 20ah 21700 7S4P Li ion battery pack, so you can use it with confidence.

Product Parameter

Battery Type	Lithium Ion Battery
Model	NCM21700-24-20
Nominal Voltage	24V
Nominal Capacity	20Ah
Charge Cut-Off Voltage	29.4V
Discharge Cut-Off Voltage	19.6V
Standard Charge current	0.2C
Max Charge Current	1.0C
Standard Discharge Current	0.2C
Max Continuous Discharge Current	1.5C
Peak Discharge Current	3.0C(<3S )
Charge Temperature	0~45℃
Discharge Temperature	-20~60℃
Weight	2.1kg Approx
Cycle Life	>700 times
Size	1609575mm Max

Product Feature And Application

1.VCELL POWER 24V 20ah 21700 7S4P Li ion battery pack uses 21700 cells, high energy density, compact structure, high space utilization, suitable for embedding inside the device
2.High power output, supports fast charging, meets the needs of high-power devices
3.Long cycle life, high stability
4.Built-in intelligent BMS system, the cell adopts nickel-plated steel shell + explosion-proof valve design, multiple safety protection
5.VCELL POWER 24V 20ah 21700 7S4P Li ion battery pack is a good choice for Electric bicycles, scooters, electric wheelchairs, portable ultrasound machines, B-ultrasound machines, ventilators, emergency power supplies,etc.

Production Details

1. VCELL POWER 24V 20ah 21700 7S4P Li ion battery pack is made of high-performance 21700 lithium-ion battery, with guaranteed quality
2. Built-in BMS, which improves the utilization rate of the battery.
